Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Current-CollectorPulsed(Icm) | Vce(on)(Max)@VgeIc | Power-Max | SwitchingEnergy | InputType | GateCharge | Td(on/off)@25°C | TestCondition | ReverseRecoveryTime(trr) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STGWT40HP65FBTRENCH GATE FIELD-STOP IGBT, HB |
551 | 3.29 |
ДобавитьРасследования |
Datasheet |
Tube | HB | Active | Trench Field Stop | 650 V | 80 A | 160 A | 2V @ 15V, 40A | 283 W | 363µJ (off) | Standard | 210 nC | -/142ns | 400V, 40A, 5Ohm, 15V | 140 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IHW20N65R5XKSA1IGBT 650V 40A TO247-3 |
103 | 3.32 |
ДобавитьРасследования |
Datasheet |
Tube | TrenchStop® | Active | - | 650 V | 40 A | 60 A | 1.7V @ 15V, 20A | 150 W | 300µJ (on), 70µJ (off) | Standard | 97 nC | 24ns/250ns | 400V, 10A, 20Ohm, 15V | 68 ns | -40°C ~ 175°C (TJ) | Through Hole | |
IHW30N120R5XKSA1HOME APPLIANCES 14 |
661 | 3.87 |
ДобавитьРасследования |
Datasheet |
Tube | TrenchStop™ | Active | Trench Field Stop | 1200 V | 60 A | 90 A | 1.85V @ 15V, 30A | 330 W | 1.1mJ (off) | Standard | 235 nC | -/330ns | 600V, 30A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | Through Hole | |
IGW30N60TFKSA1IGBT 600V 60A 187W TO247-3 |
149 | 3.88 |
ДобавитьРасследования |
Datasheet |
Tube | TrenchStop® | Active | Trench Field Stop | 600 V | 60 A | 90 A | 2.05V @ 15V, 30A | 187 W | 1.46mJ | Standard | 167 nC | 23ns/254ns | 400V, 30A, 10.6Ohm, 15V | - | -40°C ~ 175°C (TJ) | Through Hole | |
AOKS40B65H1IGBT 650V 40A TO247 |
124 | 3.91 |
ДобавитьРасследования |
Datasheet |
Tube | Alpha IGBT™ | Active | - | 650 V | 80 A | 120 A | 2.4V @ 15V, 40A | 300 W | 1.27mJ (on), 460µJ (off) | Standard | 63 nC | 41ns/130ns | 400V, 40A, 7.5Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
IXA12IF1200PBIGBT 1200V 20A 85W TO220 |
117 | 4.11 |
ДобавитьРасследования |
Datasheet |
Tube | - | Active | PT | 1200 V | 20 A | - | 2.1V @ 15V, 10A | 85 W | 1.1mJ (on), 1.1mJ (off) | Standard | 27 nC | - | 600V, 10A, 100Ohm, 15V | 350 ns | -40°C ~ 150°C (TJ) | Through Hole | |
STGWA40H65DFB2TRENCH GATE FIELD-STOP 650 V 40 |
590 | 4.12 |
ДобавитьРасследования |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 72 A | 160 A | 2V @ 15V, 40A | 230 W | 765µJ (on), 410µJ (off) | Standard | 153 nC | 18ns/72ns | 400V, 40A, 4.7Ohm, 15V | 75 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IKP40N65F5XKSA1IGBT 650V 74A TO220-3 |
257 | 4.21 |
ДобавитьРасследования |
Datasheet |
Tube | TrenchStop® | Active | - | 650 V | 74 A | 120 A | 2.1V @ 15V, 40A | 255 W | 360µJ (on), 100µJ (off) | Standard | 95 nC | 19ns/160ns | 400V, 20A, 15Ohm, 15V | 60 ns | -40°C ~ 175°C (TJ) | Through Hole | |
AOK20B135D1IGBT 1350V 40A 340W TO-247 |
190 | 4.62 |
ДобавитьРасследования |
Datasheet |
Tube | Alpha IGBT™ | Active | - | 1350 V | 40 A | 80 A | 1.8V @ 15V, 20A | 340 W | 1.05mJ (off) | Standard | 66 nC | -/156ns | 600V, 20A, 15Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
IKW15T120FKSA1IGBT 1200V 30A 110W TO247-3 |
3275 | 4.66 |
ДобавитьРасследования |
Datasheet |
Tube | TrenchStop® | Last Time Buy | NPT, Trench Field Stop | 1200 V | 30 A | 45 A | 2.2V @ 15V, 15A | 110 W | 2.7mJ | Standard | 85 nC | 50ns/520ns | 600V, 15A, 56Ohm, 15V | 140 ns | -40°C ~ 150°C (TJ) | Through Hole | |
FGA40N65SMDIGBT FIELD STOP 650V 80A TO3PN |
302 | 4.85 |
ДобавитьРасследования |
Datasheet |
Tube | - | Active | Field Stop | 650 V | 80 A | 120 A | 2.5V @ 15V, 40A | 349 W | 820µJ (on), 260µJ (off) | Standard | 119 nC | 12ns/92ns | 400V, 40A, 6Ohm, 15V | 42 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IXA12IF1200HBIGBT 1200V 20A 85W TO247 |
486 | 4.86 |
ДобавитьРасследования |
Datasheet |
Tube | - | Active | PT | 1200 V | 20 A | - | 2.1V @ 15V, 10A | 85 W | 1.1mJ (on), 1.1mJ (off) | Standard | 27 nC | - | 600V, 10A, 100Ohm, 15V | 350 ns | -40°C ~ 150°C (TJ) | Through Hole | |
APT25GR120BIGBT 1200V 75A 521W TO247 |
166 | 5.52 |
ДобавитьРасследования |
Datasheet |
Bulk | - | Active | NPT | 1200 V | 75 A | 100 A | 3.2V @ 15V, 25A | 521 W | 742µJ (on), 427µJ (off) | Standard | 203 nC | 16ns/122ns | 600V, 25A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
IKW30N65ET7XKSA1IKW30N65ET7XKSA1 |
160 | 4.16 |
ДобавитьРасследования |
Datasheet |
Tube | Automotive, AEC-Q101, TrenchStop™ | Active | Trench Field Stop | 650 V | 30 A | 90 A | 1.65V @ 15V, 30A | 188 W | 590µJ (on), 500µJ (off) | Standard | 180 nC | 20ns/245ns | 400V, 30A, 10Ohm, 15V | 80 ns | -40°C ~ 175°C (TJ) | Through Hole | |
IKW40N60H3FKSA1IGBT TRENCH/FS 600V 80A TO247-3 |
2137 | 5.86 |
ДобавитьРасследования |
Datasheet |
Tube | TrenchStop® | Active | Trench Field Stop | 600 V | 80 A | 160 A | 2.4V @ 15V, 40A | 306 W | 1.68mJ | Standard | 223 nC | 19ns/197ns | 400V, 40A, 7.9Ohm, 15V | 124 ns | -40°C ~ 175°C (TJ) | Through Hole | |

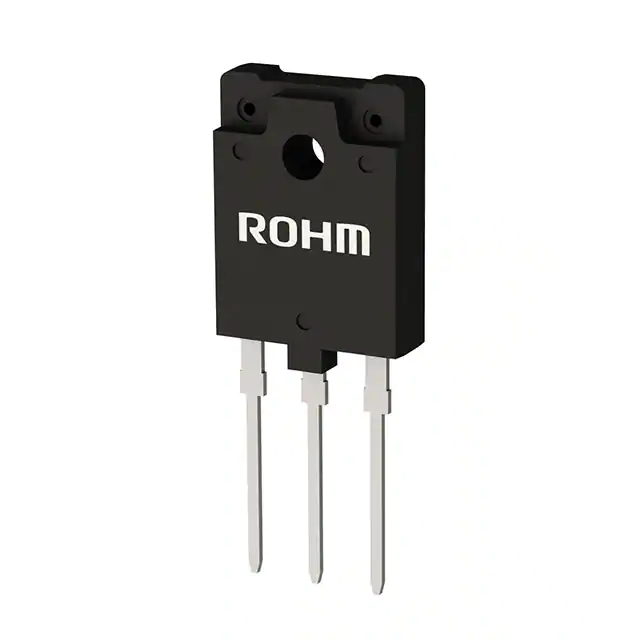

RGTH80TK65DGC11IGBT |
446 | 6.37 |
ДобавитьРасследования |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 31 A | 160 A | 2.1V @ 15V, 40A | 66 W | - | Standard | 79 nC | 34ns/120ns | 400V, 40A, 10Ohm, 15V | 58 ns | -40°C ~ 175°C (TJ) | Through Hole | |
RGS80TS65HRC11650V 40A FIELD STOP TRENCH IGBT. |
274 | 6.55 |
ДобавитьРасследования |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 73 A | 120 A | 2.1V @ 15V, 40A | 272 W | 1.05mJ (on), 1.03mJ (off) | Standard | 48 nC | 37ns/112ns | 400V, 40A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | Through Hole | |
RGW80TK65DGVC11650V 40A FIELD STOP TRENCH IGBT |
440 | 6.57 |
ДобавитьРасследования |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 39 A | 160 A | 1.9V @ 15V, 40A | 81 W | 760µJ (on), 720µJ (off) | Standard | 110 nC | 44ns/143ns | 400V, 40A, 10Ohm, 15V | 92 ns | -40°C ~ 175°C (TJ) | Through Hole | |
RGTH00TK65GC11IGBT |
408 | 6.82 |
ДобавитьРасследования |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 35 A | 200 A | 2.1V @ 15V, 50A | 72 W | - | Standard | 94 nC | 39ns/143ns | 400V, 50A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | Through Hole | |
RGTV00TK65GVC11650V 50A FIELD STOP TRENCH IGBT |
450 | 6.87 |
ДобавитьРасследования |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 45 A | 200 A | 1.9V @ 15V, 50A | 94 W | 1.17mJ (on), 940µJ (off) | Standard | 104 nC | 41ns/142ns | 400V, 50A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | Through Hole |
