Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NXH100B120H3Q0SGPIM 60-80KW Q0BOOST-L57 1200V, 1 |
3453 | 60.87 |
ДобавитьРасследования |
Datasheet |
Tray | - | Active | Trench Field Stop | 2 Independent | 1200 V | 61 A | 186 W | 2.3V @ 15V, 50A | 200 µA | 9.075 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
FP15R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
2579 | 42.49 |
ДобавитьРасследования |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | 20 mW | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

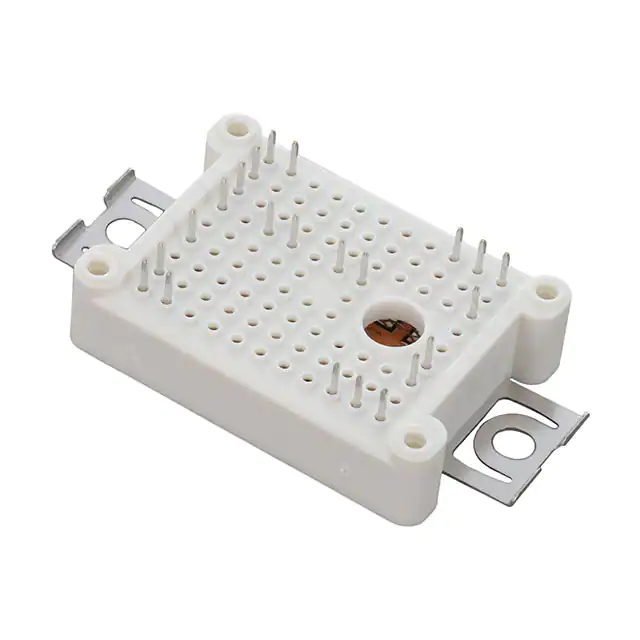

FS25R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
2535 | 42.84 |
ДобавитьРасследования |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 20 mW | - | 5.6 µA | 4.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FP10R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
2937 | 42.97 |
ДобавитьРасследования |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 10 A | 20 mW | - | 4.5 µA | 1890 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

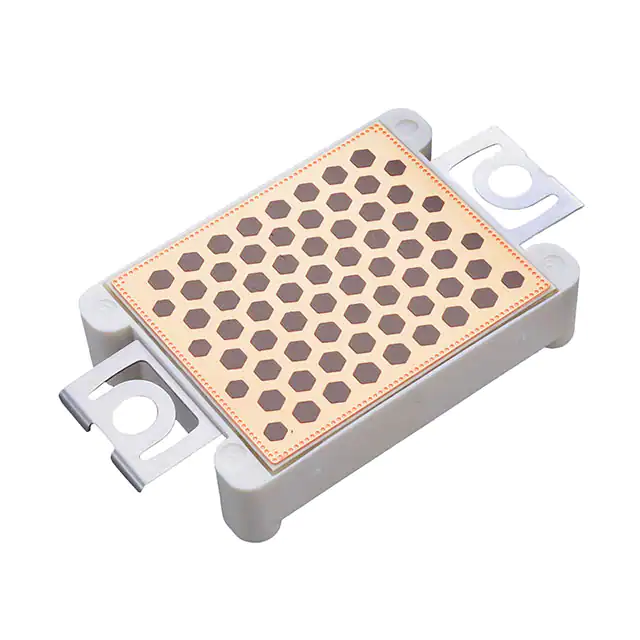

FS25R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-2 |
3585 | 43.15 |
ДобавитьРасследования |
Datasheet |
Tray | EasyPACK™, TRENCHSTOP™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 20 mW | - | 5.6 µA | 4.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
NXH100B120H3Q0PGPIM 60-80KW Q0BOOST-L57 1200V, 1 |
3084 | 62.97 |
ДобавитьРасследования |
Datasheet |
Tray | - | Active | Trench Field Stop | 2 Independent | 1200 V | 61 A | 186 W | 2.3V @ 15V, 50A | 200 µA | 9.075 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
F3L75R12W1H3PB11BPSA1LOW POWER EASY AG-EASY1B-311 |
3718 | 65.33 |
ДобавитьРасследования |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||
FP35R12W2T4PB11BPSA1IGBT MOD 1200V 70A 20MW |
3924 | 64.19 |
ДобавитьРасследования |
Datasheet |
Bulk,Tray | EasyPIM™ 2B | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 70 A | 20 mW | 2.2V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | |
APT150GN120JDQ4IGBT MOD 1200V 215A 625W ISOTOP |
2616 | 68.16 |
ДобавитьРасследования |
Datasheet |
Tube | - | Active | Trench Field Stop | Single | 1200 V | 215 A | 625 W | 2.1V @ 15V, 150A | 300 µA | 9.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | |
FP30R06W1E3BOMA1IGBT MODULE 600V 37A 115W |
2419 | 42.65 |
ДобавитьРасследования |
Datasheet |
Bulk,Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 600 V | 37 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
FP15R12W1T4BOMA1IGBT MOD 1200V 28A 130W |
3962 | 42.69 |
ДобавитьРасследования |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 28 A | 130 W | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
VS-GT75YF120NTECONO - 4 PACK IGBT |
2325 | 139.98 |
ДобавитьРасследования |
Datasheet |
Box | - | Active | Trench Field Stop | Full Bridge | 1200 V | 118 A | 431 W | 2.6V @ 15V, 75A | 100 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
DDB6U134N16RRB11BPSA2LOW POWER ECONO AG-ECONO2B-211 |
2368 | 103.53 |
ДобавитьРасследования |
Datasheet |
Tray | EconoPACK™ 2 | Active | - | Single Chopper | 1200 V | 125 A | 400 W | 2.6V @ 15V, 75A | 1 mA | 5.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |

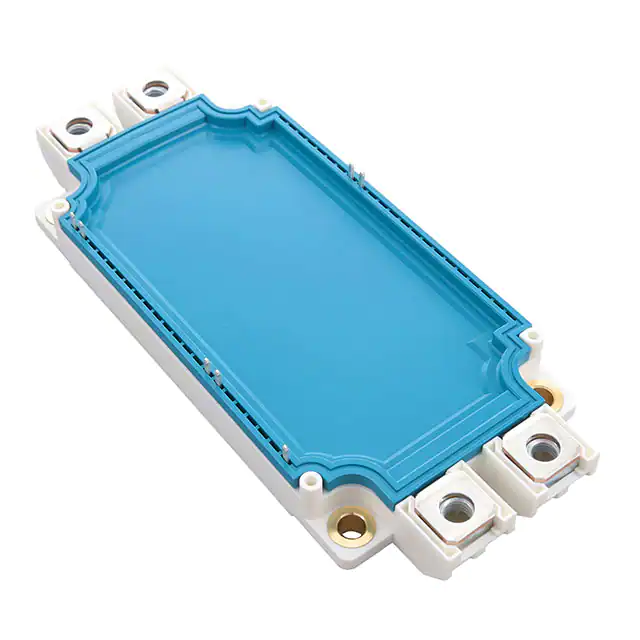

MIXA300PF1200TSFIGBT MOD 1200V 465A 1500W |
2864 | 141.93 |
ДобавитьРасследования |
Datasheet |
Box | - | Active | PT | Half Bridge | 1200 V | 465 A | 1500 W | 2.1V @ 15V, 300A | 300 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |

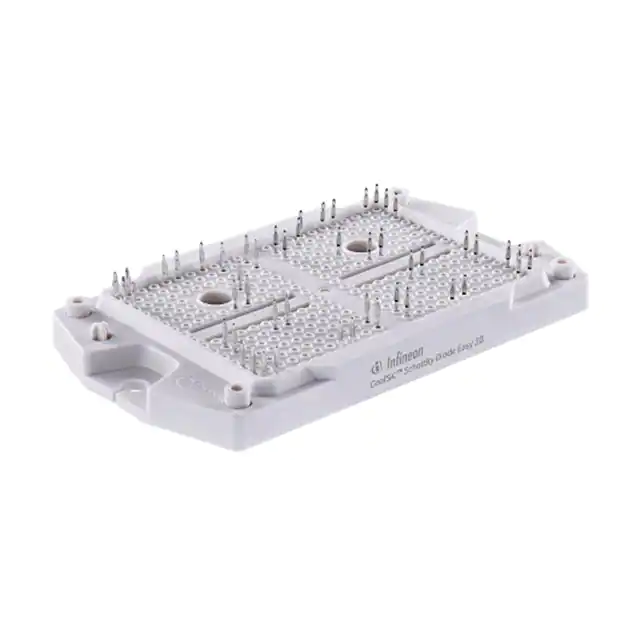

FS3L100R07W3S5B11BPSA1LOW POWER EASY AG-EASY3B-1 |
3215 | 142.19 |
ДобавитьРасследования |
Datasheet |
Tray | EasyPACK™, TRENCHSTOP™ | Active | Trench Field Stop | Three Level Inverter | 650 V | 70 A | 20 mW | 1.38V @ 15V, 50A | 7 µA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
VS-GT75YF120UTECONO - 4 PACK IGBT |
3482 | 146.14 |
ДобавитьРасследования |
Datasheet |
Box | - | Active | Trench Field Stop | Full Bridge | 1200 V | 118 A | 431 W | 2.6V @ 15V, 75A | 100 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
FS35R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
3008 | 45.60 |
ДобавитьРасследования |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 20 mW | - | 7.3 µA | 6.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

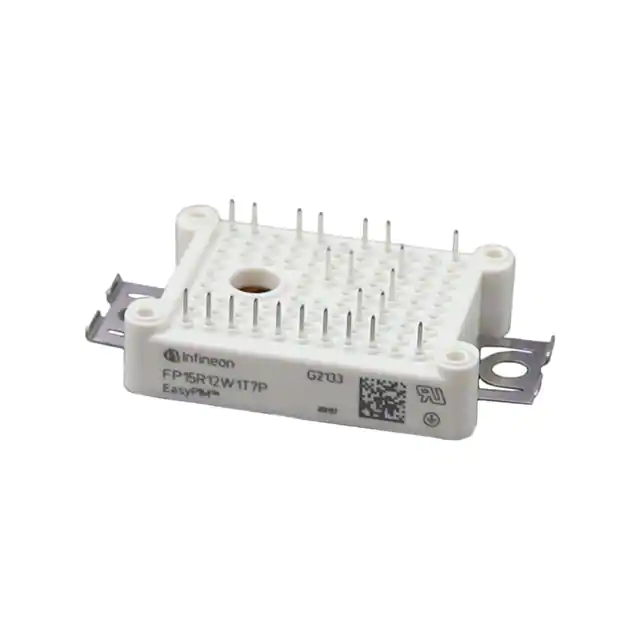

FP15R12W1T7PBPSA1LOW POWER EASY AG-EASY1B-1 |
3555 | 45.90 |
ДобавитьРасследования |
Datasheet |
Tray | EasyPIM™, TRENCHSTOP™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | 20 mW | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

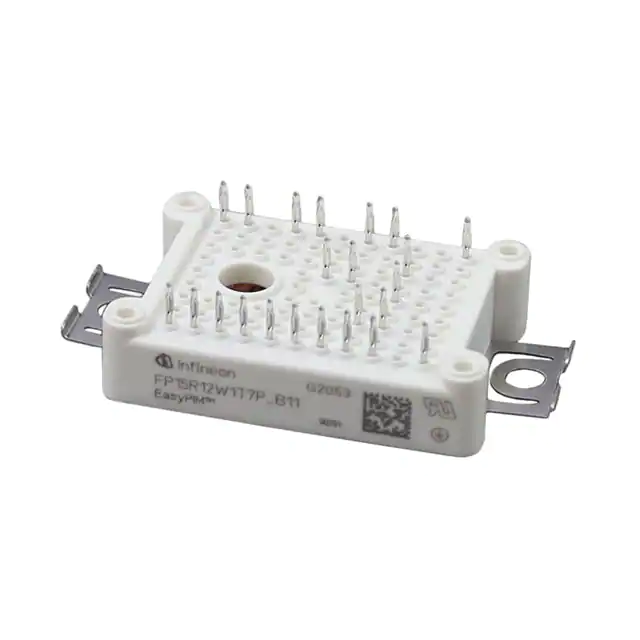

FP15R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-2 |
2606 | 46.32 |
ДобавитьРасследования |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | 20 mW | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

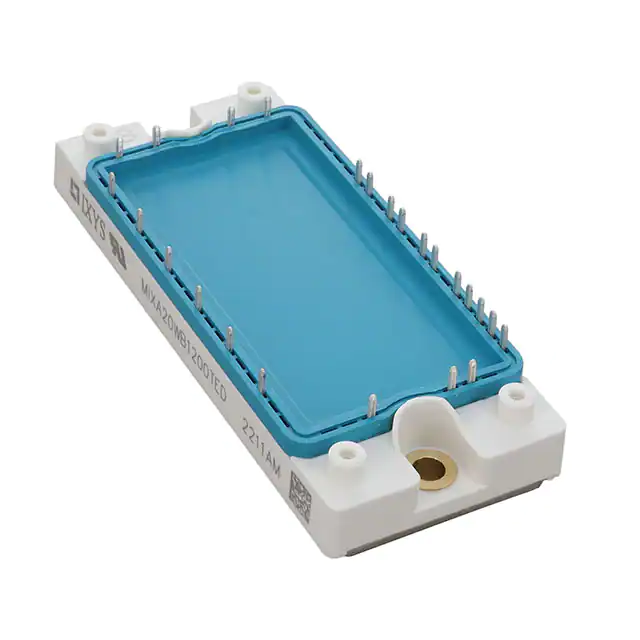

MIXA20WB1200TEDIGBT MODULE 1200V 28A 100W E2 |
2725 | 69.61 |
ДобавитьРасследования |
Datasheet |
Box | - | Active | PT | Three Phase Inverter with Brake | 1200 V | 28 A | 100 W | 2.1V @ 15V, 16A | 1.5 mA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
