Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Current-CollectorPulsed(Icm) | Vce(on)(Max)@VgeIc | Power-Max | SwitchingEnergy | InputType | GateCharge | Td(on/off)@25°C | TestCondition | ReverseRecoveryTime(trr) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NGTB50N65FL2WGIGBT TRENCH/FS 650V 100A TO247-3 |
2809 | 1.00 |
Add To CartInquiry Now |
Datasheet |
Bulk,Tube | - | Active | Trench Field Stop | 650 V | 100 A | 200 A | 2V @ 15V, 50A | 417 W | 1.5mJ (on), 460µJ (off) | Standard | 220 nC | 100ns/237ns | 400V, 50A, 10Ohm, 15V | 94 ns | -55°C ~ 175°C (TJ) | Through Hole | |

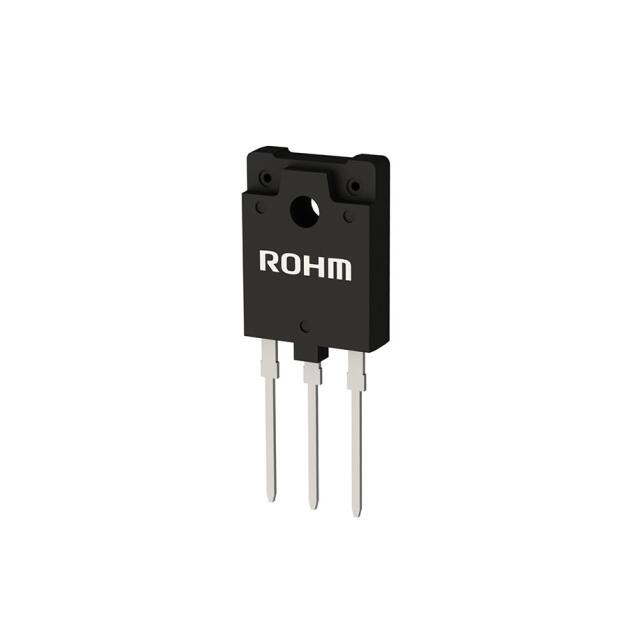

RGW40TK65DGVC11HIGH-SPEED FAST SWITCHING TYPE |
2389 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 27 A | 80 A | 1.9V @ 15V, 20A | 61 W | - | Standard | 59 nC | 33ns/76ns | 400V, 20A, 10Ohm, 15V | 92 ns | -40°C ~ 175°C (TJ) | Through Hole | |
IXGQ85N33PCD1IGBT 330V 85A 150W TO3P |
3519 | 6.66 |
Add To CartInquiry Now |
Datasheet |
Tube | Polar™ | Active | - | 330 V | 85 A | - | 3V @ 15V, 100A | 150 W | - | Standard | 80 nC | - | - | 250 ns | -55°C ~ 150°C (TJ) | Through Hole | |
IKW75N65RH5XKSA1INDUSTRY 14 |
2425 | 11.75 |
Add To CartInquiry Now |
Datasheet |
Tube | TrenchStop™ 5 | Active | Trench Field Stop | 650 V | 80 A | 300 A | 2.1V @ 15V, 75A | 395 W | 360µJ (on), 300µJ (off) | Standard | 168 nC | 26ns/180ns | 400V, 37.5A, 9Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
IXYH120N65A5IGBT 650V 120A X5 XPT TO-247 |
3569 | 11.89 |
Add To CartInquiry Now |
Datasheet |
Tube | XPT™, GenX5™ | Active | PT | 650 V | 290 A | 790 A | 1.35V @ 15V, 75A | 830 W | 1.25mJ (on), 3.2mJ (off) | Standard | 314 nC | 45ns/370ns | 400V, 60A, 3Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
FGH50N3IGBT PT 300V 75A TO247-3 |
2570 | 9.34 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | PT | 300 V | 75 A | 240 A | 1.4V @ 15V, 30A | 463 W | 130µJ (on), 92µJ (off) | Standard | 180 nC | 20ns/135ns | 180V, 30A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
STGYA75H120DF2TRENCH GATE FIELD-STOP 1200 V, 7 |
2438 | 12.24 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | Trench Field Stop | 1200 V | 150 A | 300 A | 2.6V @ 15V, 75A | 750 W | 4.3mJ (on), 3.9mJ (off) | Standard | 313 nC | 61ns/366ns | 600V, 75A, 10Ohm, 15V | 356 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IRGP35B60PDPBFAUTOMOTIVE WARP2 IGBT ULTRAFAST |
2142 | 1.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | NPT | 600 V | 60 A | 120 A | 2.55V @ 15V, 35A | 308 W | 220µJ (on), 215µJ (off) | Standard | 240 nC | 26ns/110ns | 390V, 22A, 3.3Ohm, 15V | 42 ns | -55°C ~ 150°C (TJ) | Through Hole | |
AUIRG4PC40S-EIGBT |
3002 | 1.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | Automotive, AEC-Q101 | Active | - | 600 V | 60 A | 120 A | 1.5V @ 15V, 31A | 160 W | 450µJ (on), 6.5mJ (off) | Standard | 150 nC | 22ns/650ns | 480V, 31A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
SKW15N60IGBT, 31A I(C), 600V V(BR)CES, N |
2584 | 1.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | NPT | 600 V | 31 A | 62 A | 2.4V @ 15V, 15A | 139 W | - | Standard | 76 nC | 32ns/234ns | 400V, 15A, 21Ohm, 15V | 279 ns | -55°C ~ 150°C (TJ) | Through Hole | |
IRG4BC30KDPBFIGBT, 28A I(C), 600V V(BR)CES, N |
3913 | 1.00 |
Add To CartInquiry Now |
Bulk | - | Active | - | 600 V | 28 A | 56 A | 2.7V @ 15V, 16A | 100 W | 600µJ (on), 580µJ (off) | Standard | 67 nC | 60ns/160ns | 480V, 16A, 23Ohm, 15V | 42 ns | -55°C ~ 150°C (TJ) | Through Hole | ||
HGTP7N60B3DIGBT, 14A, 600V, N-CHANNEL, TO-2 |
3812 | 1.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | 600 V | 14 A | 56 A | 2.1V @ 15V, 7A | 60 W | 160µJ (on), 120µJ (off) | Standard | 37 nC | 26ns/130ns | 480V, 7A, 50Ohm, 15V | 37 ns | -55°C ~ 150°C (TJ) | Through Hole | |
IRG4PH40UDPBFIRG4PH40U - 1200V ULTRAFAST 5-40 |
3321 | 1.00 |
Add To CartInquiry Now |
Bulk | - | Active | - | 1200 V | 41 A | 82 A | 3.1V @ 15V, 21A | 160 W | 1.8mJ (on), 1.93mJ (off) | Standard | 86 nC | 46ns/97ns | 800V, 21A, 10Ohm, 15V | 63 ns | -55°C ~ 150°C (TJ) | Through Hole | ||
IRGP30B120KD-EPMOTOR CONTROL CO-PACK IGBT W/ULT |
3171 | 1.00 |
Add To CartInquiry Now |
Bulk | - | Active | NPT | 1200 V | 60 A | 120 A | 4V @ 15V, 60A | 300 W | 1.07mJ (on), 1.49mJ (off) | Standard | 169 nC | - | 600V, 25A, 5Ohm, 15V | 300 ns | -55°C ~ 150°C (TJ) | Through Hole | ||
IRG4PC40UD-EPBFIRG4PC40 - IGBT W/ULTRAFAST SOFT |
3893 | 1.00 |
Add To CartInquiry Now |
Bulk | - | Active | - | 600 V | 40 A | 160 A | 2.1V @ 15V, 20A | 160 W | 710µJ (on), 350µJ (off) | Standard | 100 nC | 54ns/110ns | 480V, 20A, 10Ohm, 15V | 42 ns | -55°C ~ 150°C (TJ) | Through Hole | ||
IRGB20B60PD1PBFIGBT, 40A I(C), 600V V(BR)CES, N |
3950 | 1.00 |
Add To CartInquiry Now |
Bulk | - | Active | NPT | 600 V | 40 A | 80 A | 2.8V @ 15V, 20A | 215 W | 95µJ (on), 100µJ (off) | Standard | 68 nC | 20ns/115ns | 390V, 13A, 10Ohm, 15V | 28 ns | -55°C ~ 150°C (TJ) | Through Hole | ||
IRG7PK35UD1PBFIGBT WITH ULTRAFAST SOFT RECOVER |
2070 | 1.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | 1400 V | 40 A | 200 A | 2.35V @ 15V, 20A | 167 W | 650µJ (off) | Standard | 98 nC | -/150ns | 600V, 20A, 10Ohm, 15V | - | -40°C ~ 150°C (TJ) | Through Hole | |
FGI3040G2-F085IGBT, 41A, 390V, N-CHANNEL |
2503 | 1.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | Automotive, AEC-Q101, EcoSPARK® | Active | - | 400 V | 41 A | - | 1.25V @ 4V, 6A | 150 W | - | Logic | 21 nC | -/4.8µs | 300V, 6.5A, 1kOhm, 5V | 1.9 µs | -55°C ~ 175°C (TJ) | Through Hole | |
IRGP4063D-EPBFIGBT W/ULTRAFAST SOFT RECOVERY D |
2303 | 1.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Trench | 600 V | 96 A | 200 A | 2.14V @ 15V, 48A | 330 W | 625µJ (on), 1.28mJ (off) | Standard | 140 nC | 60ns/145ns | 400V, 48A, 10Ohm, 15V | 115 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IRGP4066PBFIGBT |
2004 | 1.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Trench | 600 V | 140 A | 225 A | 2.1V @ 15V, 75A | 454 W | 2.465mJ (on), 2.155mJ (off) | Standard | 225 nC | 50ns/200ns | 400V, 75A, 10Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole |
