Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FF1500R12IE5PBPSA1IGBT MOD 1200V 1500A AGPRIME3+-5 |
3286 | 1655.24 |
Add To CartInquiry Now |
Datasheet |
Tray | PrimePACK™3+ B | Active | Trench Field Stop | Half Bridge | 1200 V | 1500 A | 20 mW | 2.15V @ 15V, 1.5kA | 5 mA | - | Standard | Yes | -40°C ~ 175°C | Chassis Mount | |
FF1500R17IP5BPSA1IGBT MOD 1700V 1500A 20MW |
3331 | 1711.57 |
Add To CartInquiry Now |
Datasheet |
Tray | PrimePACK™3+ | Active | Trench Field Stop | 2 Independent | 1700 V | 1500 A | 20 mW | 2.2V @ 15V, 1500A | 5 mA | 88 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FF1500R17IP5PBPSA1IGBT MOD 1700V 1500A AGPRIME3+-5 |
2194 | 1749.11 |
Add To CartInquiry Now |
Datasheet |
Tray | PrimePACK™3+ B | Active | Trench Field Stop | Half Bridge | 1700 V | 1500 A | 1500 W | 2.2V @ 15V, 1.5kA | 5 mA | - | Standard | Yes | -40°C ~ 175°C | Chassis Mount | |
FF1800R12IE5PBPSA1IGBT MOD 1200V 1800A 20MW |
3109 | 1777.26 |
Add To CartInquiry Now |
Datasheet |
Tray | PrimePACK™3+ | Active | Trench Field Stop | 2 Independent | 1200 V | 1800 A | 20 mW | 2.15V @ 15V, 1800A | 5 mA | 98.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FF225R65T3E3BPSA1IHV IHM T XHP 3 3-6 5K AG-XHP3K6 |
2189 | 1947.96 |
Add To CartInquiry Now |
Datasheet |
Tray | XHP™3 | Active | Trench Field Stop | 2 Independent | 5900 V | 225 A | 1000000 W | 3.4V @ 15V, 225A | 5 mA | 65.6 nF @ 25 V | Standard | No | 125°C (TJ) | Chassis Mount | |
FZ750R65KE3NOSA1IGBT MOD 6500V 750A A-IHV190-6 |
2949 | 2918.37 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | - | Single | 6500 V | 750 A | 14500 W | 3.4V @ 15V, 750A | 5 mA | 205 nF @ 25 V | Standard | No | -50°C ~ 125°C | Chassis Mount | |
FZ2400R33HE4BPSA1HV B SINGLE SWITCH POWER MODULES |
2180 | 3190.32 |
Add To CartInquiry Now |
Datasheet |
Tray | IHM-B | Active | Trench Field Stop | Single Switch | 3300 V | 2400 A | 5.4 MW | 2.65V @ 15V, 2.4kA | 5 mA | 280 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |

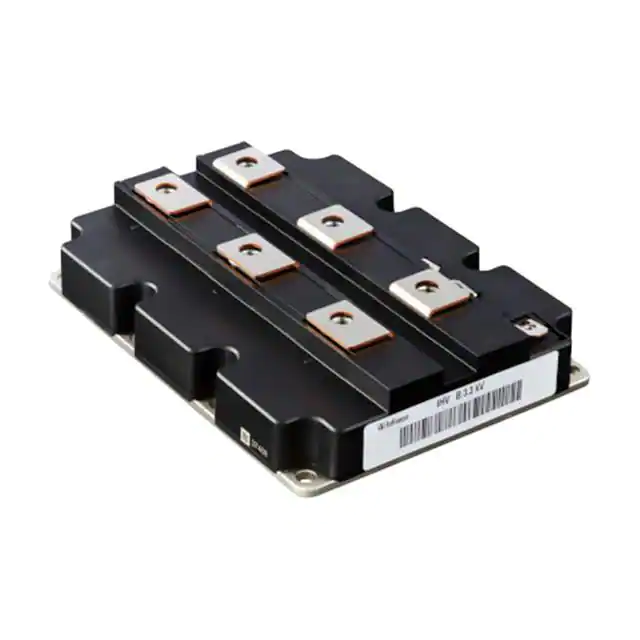

FZ1800R45HL4BPSA1IHV IHM T XHP 3 3-6 5K AG-IHVB19 |
2054 | 4092.27 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | Trench Field Stop | 3 Independent | 4500 V | 1.8 kA | 4000 W | 2.8V @ 15V, 1.8kA | 5 mA | 297 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |

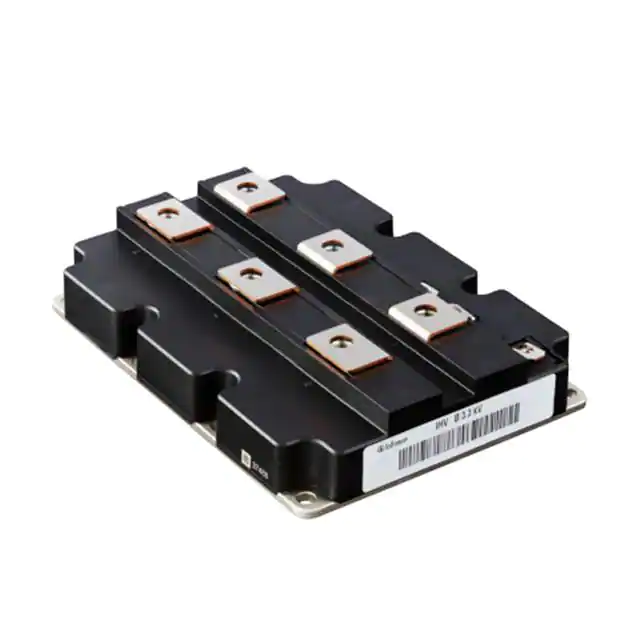

FZ1800R45HL4S7BPSA1IGBT MODULE |
3730 | 4365.27 |
Add To CartInquiry Now |
Datasheet |
Tray | IHM-B | Active | Trench Field Stop | - | 4500 V | 1.8 kA | 4 MW | 2.6V @ 25V, 1800A | 5 mA | 297 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |

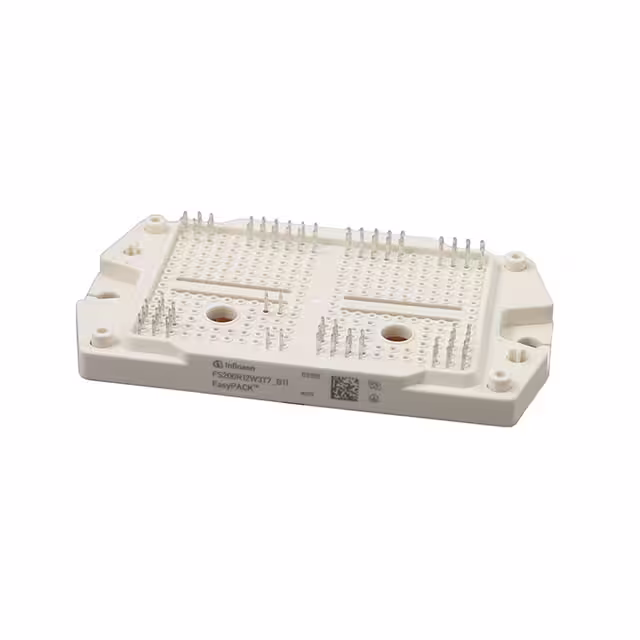

FS200R12W3T7B11BPSA1LOW POWER EASY AG-EASY3B-1 |
3034 | 166.64 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||

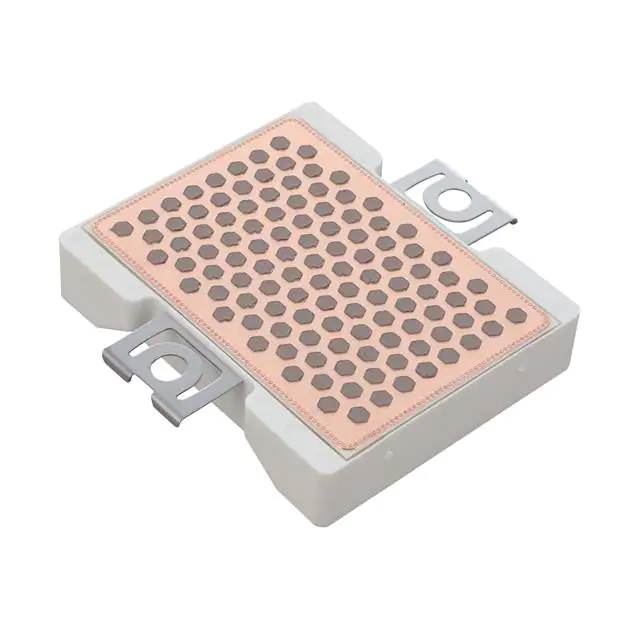

F3L8MR12W2M1HPB11BPSA1LOW POWER EASY AG-EASY2B-3111 |
2452 | 194.53 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||
FP100R12N3T7B16BPSA1LOW POWER ECONO AG-ECONO3B-711 |
3625 | 233.10 |
Add To CartInquiry Now |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | - | - | - | Three Phase Bridge Rectifier | Yes | - | - | ||
FP100R12N3T7BPSA1LOW POWER ECONO AG-ECONO3B-711 |
3330 | 233.10 |
Add To CartInquiry Now |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | - | - | - | Three Phase Bridge Rectifier | Yes | - | - | ||

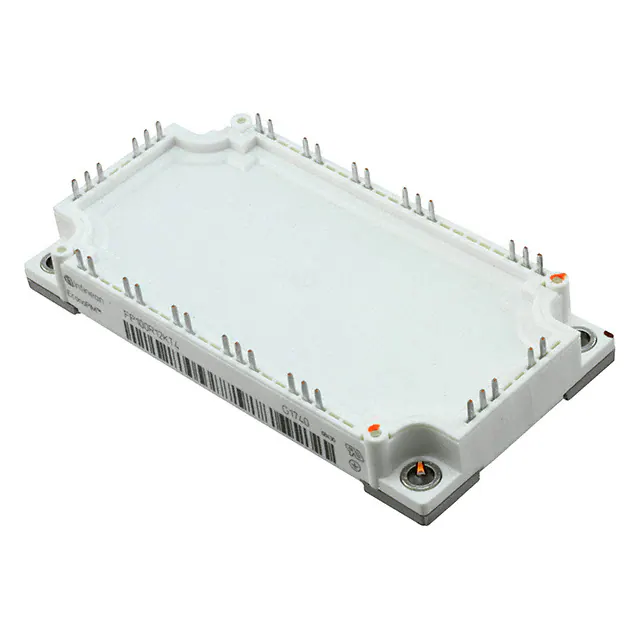

FP100R12KT4B11BOSA1IGBT MOD 1200V 100A 515W |
3544 | 235.39 |
Add To CartInquiry Now |
Datasheet |
Tray | EconoPIM™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 515 W | 2.1V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
FP100R12N3T7B11BPSA1LOW POWER ECONO AG-ECONO3B-711 |
3774 | 236.37 |
Add To CartInquiry Now |
Tray | EconoPIM™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | - | - | - | Standard | No | - | - | ||
F4100R12N2H3FB11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
3320 | 239.75 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||

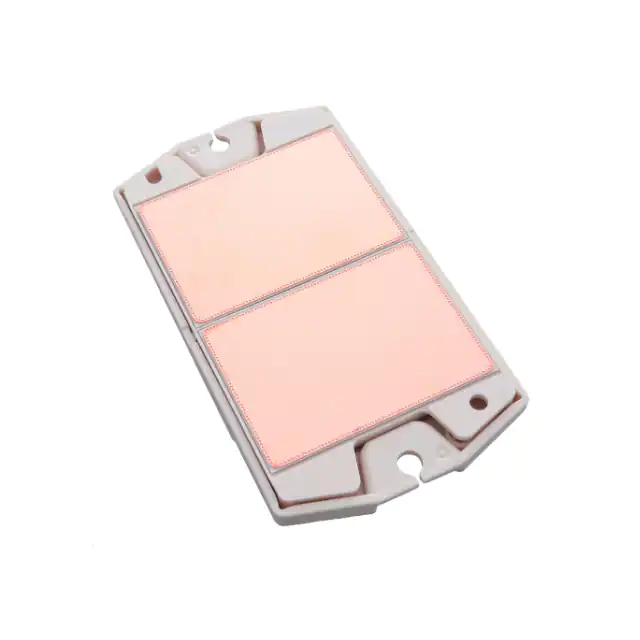

FS3L200R10W3S7FB94BPSA1LOW POWER EASY AG-EASY3B-7011 |
2619 | 248.13 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||

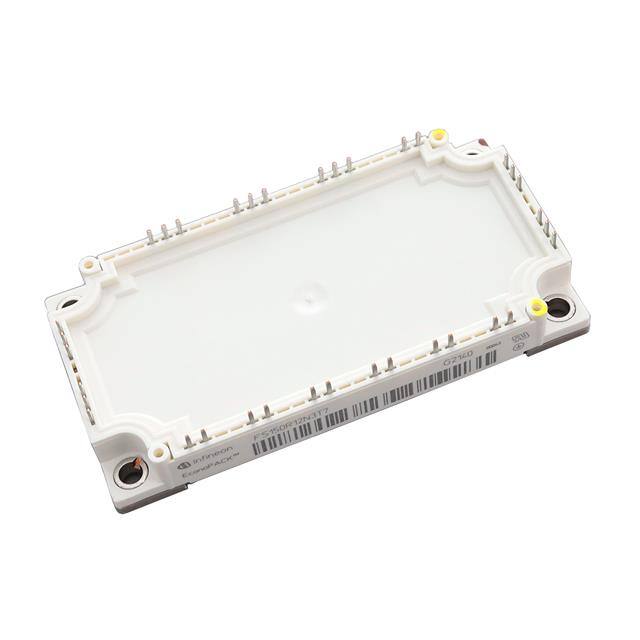

FS150R12N3T7BPSA1LOW POWER ECONO AG-ECONO3B-711 |
2462 | 248.94 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||

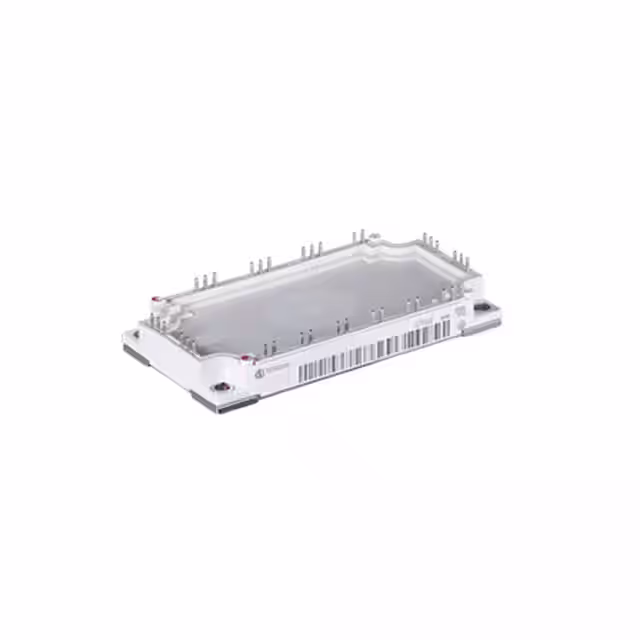

F4150R17N3P4B58BPSA1LOW POWER ECONO AG-ECONO3B-411 |
2878 | 288.78 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||
FS200R12N3T7BPSA1LOW POWER ECONO AG-ECONO3-4 |
2453 | 290.15 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
