Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FP25R12KS4CBOSA1IGBT MOD 1200V 40A 230W |
2597 | 94.13 |
Add To CartInquiry Now |
Datasheet |
Bulk,Bulk | - | Last Time Buy | - | Single | 1200 V | 40 A | 230 W | 3.7V @ 15V, 25A | 5 mA | 1.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | |
FS200R10W3S7B11BPSA1LOW POWER EASY |
3465 | 124.47 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||
FS100R07N2E4B11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
2049 | 120.21 |
Add To CartInquiry Now |
Datasheet |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Three Phase Inverter | 650 V | 100 A | 335 W | 1.95V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
BSM25GD120DN2BOSA1IGBT MOD 1200V 35A 200W |
3897 | 95.51 |
Add To CartInquiry Now |
Bulk,Tray | - | Not For New Designs | - | Full Bridge | 1200 V | 35 A | 200 W | 3V @ 15V, 25A | 800 µA | 1.65 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | ||
DF160R12W2H3FB11BPSA1IGBT MOD 1200V 40A 20MW |
3850 | 125.65 |
Add To CartInquiry Now |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 40 A | 20 mW | 1.7V @ 15V, 20A | 1 mA | 2.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
F3L400R07W3S5B59BPSA1LOW POWER EASY AG-EASY3B-7011 |
3958 | 153.30 |
Add To CartInquiry Now |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Level Inverter | 650 V | 255 A | 20 mW | 1.13V @ 15V, 100A | 19 µA | 14.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
MKI100-12F8IGBT MODULE 1200V 125A 640W E3 |
3400 | 156.65 |
Add To CartInquiry Now |
Datasheet |
Box | - | Active | NPT | Full Bridge Inverter | 1200 V | 125 A | 640 W | 3.9V @ 15V, 100A | 1.3 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | |
FP100R12W3T7B11BPSA1LOW POWER EASY |
3188 | 163.31 |
Add To CartInquiry Now |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 20 mW | - | 1 mA | 21.7 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

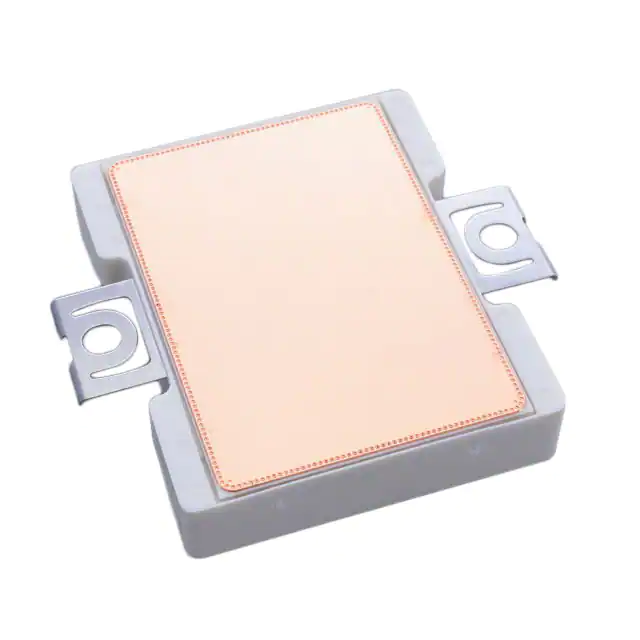

F3L150R07W2H3B11BPSA1LOW POWER EASY AG-EASY2B-411 |
3540 | 88.76 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||
FS100R12W2T7BOMA1LOW POWER EASY AG-EASY2B-1 |
2895 | 89.02 |
Add To CartInquiry Now |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 70 A | 20 mW | - | 9 µA | 21.7 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FS100R12N2T7B15BPSA1LOW POWER ECONO |
2239 | 166.98 |
Add To CartInquiry Now |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 100 A | 20 mW | 1.8V @ 15V, 100A | 10 µA | 21.7 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

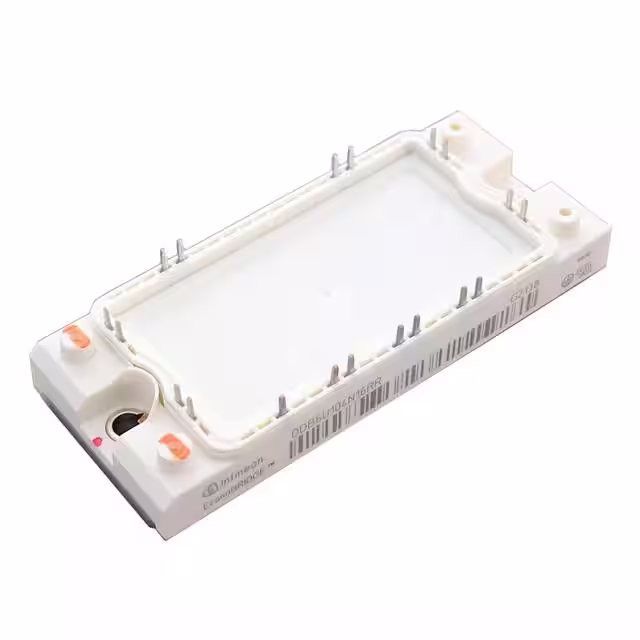

DDB6U104N16RRBPSA1LOW POWER ECONO AG-ECONO2B-211 |
2575 | 90.48 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | - | Single Chopper | 1200 V | 50 A | 20 mW | 2.8V @ 15V, 50A | 1 mA | 3.3 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | |
FMG1G300US60HIGBT, 300A, 600V, N-CHANNEL |
2155 | 90.66 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | Single | 600 V | 300 A | 892 W | 2.7V @ 15V, 300A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
FMG1G300US60LIGBT, 300A, 600V, N-CHANNEL |
3401 | 90.66 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | Single | 600 V | 300 A | 892 W | 2.7V @ 15V, 300A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |

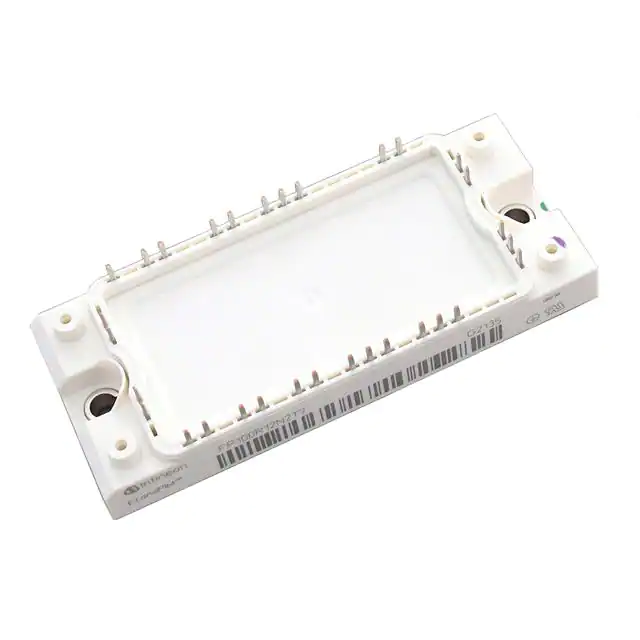

FP100R12N2T7BPSA1LOW POWER ECONO AG-ECONO2-4 |
3210 | 174.12 |
Add To CartInquiry Now |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 20 mW | 1.5V @ 15V, 100A | 10 µA | 21.7 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

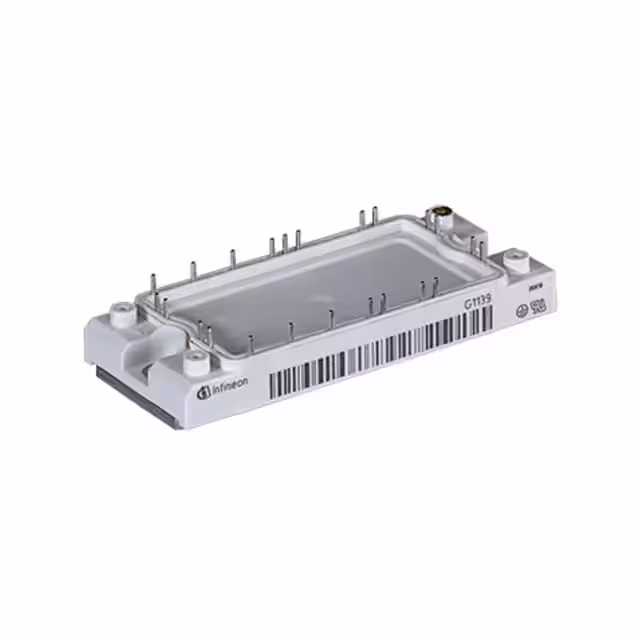

DDB6U104N16RRB37BPSA1LOW POWER ECONO AG-ECONO2B-411 |
2942 | 93.69 |
Add To CartInquiry Now |
Tray | - | Active | - | Single Chopper | 1200 V | 50 A | 20 mW | 2.8V @ 15V, 50A | 1 mA | 3.3 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | ||
FP75R12N3T7B11BPSA1LOW POWER ECONO |
2825 | 179.32 |
Add To CartInquiry Now |
Datasheet |
Tray | EconoPIM™3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 20 mW | 1.8V @ 15V, 75A | 13 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
BSM75GB120DN2_E3223C-SEIGBT MODULE |
3593 | 94.10 |
Add To CartInquiry Now |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||
FF450R07ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-411 |
3103 | 182.24 |
Add To CartInquiry Now |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 650 V | 560 A | 1450 W | 1.95V @ 15V, 450A | 1 mA | 27.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
FF225R17ME7B11BPSA1ECONODUAL3 MODULE WITH TRENCHSTO |
3271 | 185.46 |
Add To CartInquiry Now |
Tray | EconoDUAL™ 3, TRENCHSTOP™ | Active | Trench Field Stop | Half Bridge | 1700 V | 225 A | 20 mW | 1.85V @ 15V, 225A | 5 mA | 22.9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
