Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Current-CollectorPulsed(Icm) | Vce(on)(Max)@VgeIc | Power-Max | SwitchingEnergy | InputType | GateCharge | Td(on/off)@25°C | TestCondition | ReverseRecoveryTime(trr) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IXXH100N60C3IGBT 600V 190A 830W TO247AD |
2342 | 17.39 |
Add To CartInquiry Now |
Datasheet |
Tube | GenX3™, XPT™ | Active | PT | 600 V | 190 A | 380 A | 2.2V @ 15V, 70A | 830 W | 2mJ (on), 950µJ (off) | Standard | 150 nC | 30ns/90ns | 360V, 70A, 2Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
RJH1CM5DPQ-E0#T2IGBT, 30A, 1200V, N-CHANNEL, TO- |
500 | 8.84 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | 1200 V | 30 A | - | 2.7V @ 15V, 15A | 245 W | 1.6mJ (on), 700µJ (off) | Standard | 74 nC | 40ns/100ns | 600V, 15A, 5Ohm, 15V | 200 ns | 150°C (TJ) | Through Hole | |
HGTA32N60E232A, 600V N-CHANNEL IGBT |
215 | 10.60 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | 600 V | 50 A | 200 A | 2.9V @ 15V, 32A | 208 W | - | Standard | 265 nC | - | - | - | -55°C ~ 150°C (TJ) | Through Hole | |

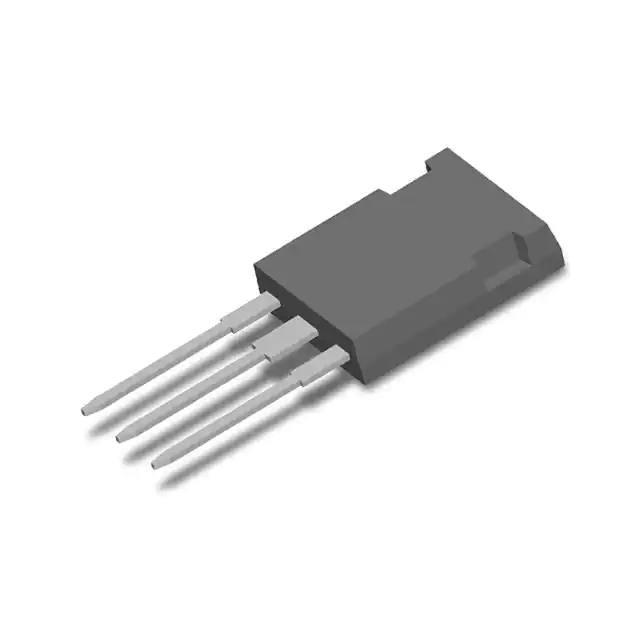

IXYX110N120B4IGBT 1200V 110A GEN4 XPT PLUS247 |
3935 | 21.69 |
Add To CartInquiry Now |
Datasheet |
Tube | XPT™ | Active | - | 1200 V | 340 A | 800 A | 2.1V @ 15V, 110A | 1360 W | 3.6mJ (on), 3.85mJ (off) | Standard | 340 nC | 45ns/390ns | 600V, 50A, 2Ohm, 15V | 50 ns | -55°C ~ 175°C (TJ) | Through Hole | |
APT65GP60L2DQ2GIGBT 600V 198A 833W TO264 |
2555 | 21.94 |
Add To CartInquiry Now |
Datasheet |
Tube | POWER MOS 7® | Active | PT | 600 V | 198 A | 250 A | 2.7V @ 15V, 65A | 833 W | 605µJ (on), 895µJ (off) | Standard | 210 nC | 30ns/90ns | 400V, 65A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
IXYX100N120B3IGBT 1200V 188A 1150W PLUS247 |
2241 | 24.43 |
Add To CartInquiry Now |
Datasheet |
Tube | GenX3™, XPT™ | Active | PT | 1200 V | 225 A | 530 A | 2.6V @ 15V, 100A | 1150 W | 7.7mJ (on), 7.1mJ (off) | Standard | 250 nC | 30ns/153ns | 600V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
IXYX100N120C3IGBT 1200V 188A 1150W PLUS247 |
3330 | 24.43 |
Add To CartInquiry Now |
Datasheet |
Tube | GenX3™, XPT™ | Active | - | 1200 V | 188 A | 490 A | 3.5V @ 15V, 100A | 1150 W | 6.5mJ (on), 2.9mJ (off) | Standard | 270 nC | 32ns/123ns | 600V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
IXYA8N250CHVIGBT |
2197 | 14.81 |
Add To CartInquiry Now |
Datasheet |
Bulk | XPT™ | Active | - | 2500 V | 29 A | 70 A | 4V @ 15V, 8A | 280 W | 2.6mJ (on), 1.07mJ (off) | Standard | 45 nC | 11ns/180ns | 1250V, 8A, 15Ohm, 15V | 5 ns | -55°C ~ 175°C (TJ) | Surface Mount | |
NTE3323IGBT-1200V 25AMP |
2237 | 29.12 |
Add To CartInquiry Now |
Datasheet |
Bag | - | Active | - | 1200 V | 25 A | 50 A | 4V @ 15V, 25A | 200 W | - | Standard | - | 400ns/800ns | - | - | 150°C (TJ) | Through Hole | |
IXYH16N250CV1HVIGBT 2500V 35A TO247HV |
3901 | 30.69 |
Add To CartInquiry Now |
Datasheet |
Tube | XPT™ | Active | - | 2500 V | 35 A | 126 A | 4V @ 15V, 16A | 500 W | 4.75mJ (on), 3.9mJ (off) | Standard | 97 nC | 14ns/260ns | 1250V, 16A, 10Ohm, 15V | 19 ns | -55°C ~ 175°C (TJ) | Through Hole | |
MMIX1Y100N120C3H1IGBT 1200V 92A 400W SMPD |
3524 | 47.98 |
Add To CartInquiry Now |
Datasheet |
Tube | GenX3™, XPT™ | Active | - | 1200 V | 92 A | 440 A | 3.5V @ 15V, 100A | 400 W | 6.5mJ (on), 2.9mJ (off) | Standard | 270 nC | 48ns/123ns | 600V, 100A, 1Ohm, 15V | 420 ns | -55°C ~ 175°C (TJ) | Surface Mount | |
IXGF20N300IGBT 3000V 22A 100W I4-PAK |
3349 | 50.26 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | - | 3000 V | 22 A | 103 A | 3.2V @ 15V, 20A | 100 W | - | Standard | 31 nC | - | - | - | -55°C ~ 150°C (TJ) | Through Hole | |
TIG058E8-TL-HIGBT 400V 8ECH |
478 | 0.82 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | - | Obsolete | - | 400 V | - | 150 A | 5.6V @ 4V, 100A | - | - | Standard | - | - | - | - | 150°C (TJ) | Surface Mount | |
STGD3NB60SDT4IGBT 600V 6A 48W DPAK |
3104 | 1.20 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | PowerMESH™ | Active | - | 600 V | 6 A | 25 A | 1.5V @ 15V, 3A | 48 W | 1.15mJ (off) | Standard | 18 nC | 125µs/- | 480V, 3A, 1kOhm, 15V | 1.7 µs | 175°C (TJ) | Surface Mount | |
STGD3NB60FT4IGBT 600V 6A 60W DPAK |
3722 | 1.22 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerMESH™ | Obsolete | - | 600 V | 6 A | 24 A | 2.4V @ 15V, 3A | 60 W | 125µJ (off) | Standard | 16 nC | 12.5ns/105ns | 480V, 3A, 10Ohm, 15V | 45 ns | 150°C (TJ) | Surface Mount | |
AOTF5B65M1IGBT 650V 5A TO220 |
921 | 1.44 |
Add To CartInquiry Now |
Datasheet |
Tube | Alpha IGBT™ | Active | - | 650 V | 10 A | 15 A | 1.98V @ 15V, 5A | 25 W | 80µJ (on), 70µJ (off) | Standard | 14 nC | 8.5ns/106ns | 400V, 5A, 60Ohm, 15V | 195 ns | -55°C ~ 150°C (TJ) | Through Hole | |
AOB5B65M1IGBT 650V 5A TO263 |
255 | 1.55 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | Alpha IGBT™ | Active | - | 650 V | 10 A | 15 A | 1.98V @ 15V, 5A | 83 W | 80µJ (on), 70µJ (off) | Standard | 14 nC | 8.5ns/106ns | 400V, 5A, 60Ohm, 15V | 195 ns | -55°C ~ 175°C (TJ) | Surface Mount | |
AOT5B65M1IGBT 650V 5A TO220 |
754 | 1.58 |
Add To CartInquiry Now |
Datasheet |
Tube | Alpha IGBT™ | Active | - | 650 V | 10 A | 15 A | 1.98V @ 15V, 5A | 83 W | 80µJ (on), 70µJ (off) | Standard | 14 nC | 8.5ns/106ns | 400V, 5A, 60Ohm, 15V | 195 ns | -55°C ~ 175°C (TJ) | Through Hole | |
STGD7NB60KT4IGBT 600V 14A 70W DPAK |
3418 | 1.59 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerMESH™ | Obsolete | - | 600 V | 14 A | 56 A | 2.8V @ 15V, 7A | 70 W | 95µJ (on), 140µJ (off) | Standard | 32.7 nC | 15ns/50ns | 480V, 7A, 10Ohm, 15V | - | 150°C (TJ) | Surface Mount | |
STGFL6NC60DIGBT 600V 7A 22W TO220FP |
492 | 1.64 |
Add To CartInquiry Now |
Datasheet |
Tube | PowerMESH™ | Obsolete | - | 600 V | 7 A | 25 A | 2.9V @ 15V, 3A | 22 W | 46.5µJ (on), 23.5µJ (off) | Standard | 12 nC | 6.7ns/46ns | 390V, 3A, 10Ohm, 15V | 30 ns | -55°C ~ 150°C (TJ) | Through Hole |
