Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType
74LCX02SJX IC GATE NOR 4CH 2-INP 14SOP Fairchild Semiconductor	34531	0.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	74LCX	Active	NOR Gate	4	2	-	2V ~ 3.6V	10 µA	24mA, 24mA	0.7V ~ 0.8V	1.7V ~ 2V	5.2ns @ 3.3V, 50pF	-40°C ~ 85°C	Surface Mount
SN74AHC32N IC GATE OR 4CH 2-INP 14DIP Texas Instruments	1584	0.96	- + Add To Cart Inquiry Now	Datasheet	Tube	74AHC	Active	OR Gate	4	2	-	2V ~ 5.5V	2 µA	8mA, 8mA	0.5V ~ 1.65V	1.5V ~ 3.85V	7.5ns @ 5V, 50pF	-40°C ~ 125°C	Through Hole
CD4081BCMX CMOS QUAD 2-INPUT AND GATE Fairchild Semiconductor	117645	0.99	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	AND Gate	4	2	-	3V ~ 15V	1 µA	8.8mA, 8.8mA	1.5V ~ 4V	3V ~ 9V	70ns @ 15V, 50pF	-55°C ~ 125°C	Surface Mount
CD4070BCMX XOR GATE Fairchild Semiconductor	29544	0.99	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	XOR (Exclusive OR)	4	2	-	3V ~ 15V	1 µA	8.8mA, 8.8mA	1.5V ~ 4V	3.5V ~ 11V	75ns @ 15V, 50pF	-55°C ~ 125°C	Surface Mount
SN74AS20DB NAND GATE Texas Instruments	24480	0.99	- + Add To Cart Inquiry Now		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
CD4070BCN IC GATE XOR 4CH 2-INP 14DIP Fairchild Semiconductor	4851	0.99	- + Add To Cart Inquiry Now	Datasheet	Tube	4000B	Obsolete	XOR (Exclusive OR)	4	2	-	3V ~ 15V	1 µA	3.4mA, 3.4mA	1.5V ~ 4V	3.5V ~ 11V	75ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
7453PC AND-OR-INVERT GATE, TTL, PDIP14 National Semiconductor	16071	1.04	- + Add To Cart Inquiry Now	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
NTE74LS05 IC INVERT OPEN COL 6CH 1IN 14DIP NTE Electronics, Inc	742	1.06	- + Add To Cart Inquiry Now	Datasheet	Bag	74LS	Active	Inverter	6	1	Open Collector	4.75V ~ 5.25V	-	-, 8mA	0.8V	2V	32ns @ 5V, 50pF	0°C ~ 70°C (TA)	Through Hole
NTE4000 IC GATE NOR 3CH 3-INP 14DIP NTE Electronics, Inc	132	1.06	- + Add To Cart Inquiry Now	Datasheet	Bag	4000	Active	NOR Gate	3	3	-	3V ~ 18V	1 µA	1.8mA, 4.2mA	1V ~ 2.5V	4V ~ 12.5V	80ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
7412PC NAND GATE, TTL, PDIP14 National Semiconductor	38302	1.07	- + Add To Cart Inquiry Now	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
74S15PC AND GATE, TTL, PDIP14 National Semiconductor	18330	1.14	- + Add To Cart Inquiry Now	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
CD74HC7266E IC GATE XNOR 4CH 2-INP 14DIP Harris Corporation	13851	1.21	- + Add To Cart Inquiry Now	Datasheet	Tube	74HC	Obsolete	XNOR (Exclusive NOR)	4	2	-	2V ~ 6V	2 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	30ns @ 6V, 50pF	-55°C ~ 125°C	Through Hole
MM74C00M NAND GATE SERIES PDSO14 Fairchild Semiconductor	51056	1.31	- + Add To Cart Inquiry Now	Datasheet	Bulk	74C	Active	NAND Gate	4	2	-	3V ~ 15V	-	8mA, 8mA	1.5V ~ 2V	3.5V ~ 8V	60ns @ 10V, 50pF	-55°C ~ 125°C	Surface Mount
MC74ACT08M AND GATE, ACT SERIES onsemi	25782	1.32	- + Add To Cart Inquiry Now	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
NTE40106B IC INVERT SCHMITT 6CH 1-IN 14DIP NTE Electronics, Inc	340	1.32	- + Add To Cart Inquiry Now	Datasheet	Bag	4000B	Active	Inverter	6	1	Schmitt Trigger	3V ~ 18V	20 µA	6.8mA, 6.8mA	0.9V ~ 4V	3.6V ~ 10.8V	120ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
74F30SCX NAND GATE Fairchild Semiconductor	12500	1.34	- + Add To Cart Inquiry Now	Datasheet	Bulk	74F	Active	NAND Gate	1	8	-	4.5V ~ 5.5V	4.5 mA	1mA, 20mA	0.8V	2V	5ns @ 5V, 50pF	0°C ~ 70°C	Surface Mount
MC10123P NOR GATE onsemi	11425	1.38	- + Add To Cart Inquiry Now	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
MC10101P OR/NOR GATE onsemi	2479	1.38	- + Add To Cart Inquiry Now	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
NTE74LS04 IC INVERTER 6CH 1-INP 14DIP NTE Electronics, Inc	790	1.40	- + Add To Cart Inquiry Now	Datasheet	Bag	74LS	Active	Inverter	6	1	-	4.75V ~ 5.25V	-	400µA, 8mA	0.8V	2V	15ns @ 5V, 50pF	0°C ~ 70°C (TA)	Through Hole

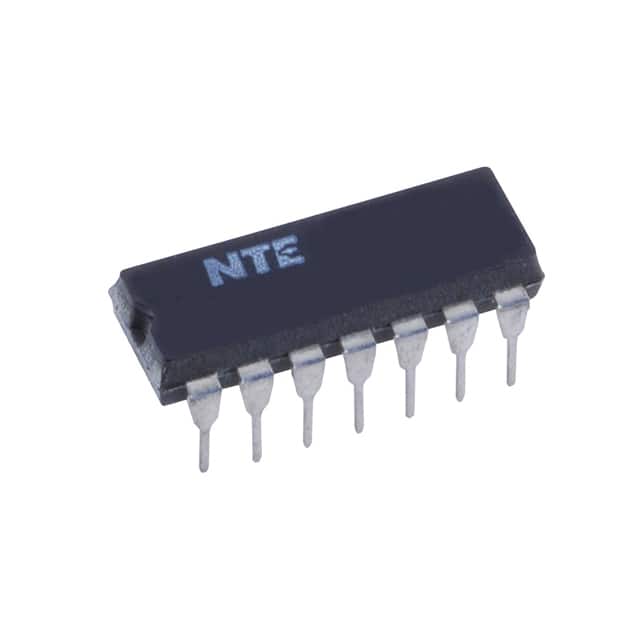

NTE74HC32 IC GATE OR 4CH 2-INP 14DIP NTE Electronics, Inc	567	1.40	- + Add To Cart Inquiry Now	Datasheet	Bag	74HC	Active	OR Gate	4	2	-	2V ~ 6V	20 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	20ns @ 6V, 50pF	-40°C ~ 85°C (TA)	Through Hole
