Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType
74AUP1G06GF,132-NXP IC INVERTER OD 1CH 1-INP 6XSON NXP USA Inc.	3052	QRF	- + Add To Cart Inquiry Now		Bulk	74AUP	Active	Inverter	1	1	Open Drain	0.8V ~ 3.6V	500 nA	-, 4mA	0.7V ~ 0.9V	1.6V ~ 2V	10.5ns @ 3.3V, 30pF	-40°C ~ 125°C	Surface Mount
NC7SU04M5-FS INVERTER, HC/UH SERIES, 1 FUNC Fairchild Semiconductor	3857	QRF	- + Add To Cart Inquiry Now		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-
74HC21DB,118-NEX IC GATE AND 2CH 4-INP 14SSOP Nexperia USA Inc.	2128	QRF	- + Add To Cart Inquiry Now	Datasheet	Bulk	74HC	Active	AND Gate	2	4	-	2V ~ 6V	2 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.2V ~ 3.2V	19ns @ 6V, 50pF	-40°C ~ 125°C	Surface Mount
74AHC3G04GD,125-NEX INVERTER, AHC/VHC/H/U/V SERIES Nexperia USA Inc.	3069	QRF	- + Add To Cart Inquiry Now		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-
74HCT08DB,112-NEX IC GATE AND 4CH 2-INP 14SSOP Nexperia USA Inc.	2962	QRF	- + Add To Cart Inquiry Now		Tube	74HCT	Active	AND Gate	4	2	-	4.5V ~ 5.5V	2 µA	4mA, 5.2mA	0.8V	1.6V	24ns @ 4.5V, 50pF	-40°C ~ 125°C	Surface Mount
74HC21DB,112-NXP IC GATE AND 2CH 4-INP 14SSOP NXP USA Inc.	3604	QRF	- + Add To Cart Inquiry Now	Datasheet	Tube	74HC	Active	AND Gate	2	4	-	2V ~ 6V	2 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.2V ~ 3.2V	19ns @ 6V, 50pF	-40°C ~ 125°C	Surface Mount
74HC3G14GD,125-NXP IC INVERT SCHMITT 3CH 3-IN 8XSON NXP USA Inc.	3135	QRF	- + Add To Cart Inquiry Now		Bulk	74HC	Active	Inverter	3	3	Schmitt Trigger	2V ~ 6V	1 µA	5.2mA, 5.2mA	0.3V ~ 1.2V	1.5V ~ 4.2V	21ns @ 6V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC2G08GM,125-NXP FUNC, 2 INPUT, CMOS, PDSO8 NXP USA Inc.	2860	QRF	- + Add To Cart Inquiry Now		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
74HC32DB,112-NEX IC GATE OR 4CH 2-INP 14SSOP Nexperia USA Inc.	2896	QRF	- + Add To Cart Inquiry Now		Tube	74HC	Active	OR Gate	4	2	-	2V ~ 6V	2 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	15ns @ 6V, 50pF	-40°C ~ 125°C	Surface Mount
74F11SCX-NS AND GATE, F/FAST SERIES, 3 FUNC National Semiconductor	3901	QRF	- + Add To Cart Inquiry Now	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-
NC7S04M5-ON INVERTER, HC/UH SERIES, 1 FUNC onsemi	2818	QRF	- + Add To Cart Inquiry Now	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-
74AUP2G08GD,125-NX IC GATE AND 2CH 2-INP 8XSON NXP USA Inc.	2387	QRF	- + Add To Cart Inquiry Now	Datasheet	Bulk	74AUP	Active	AND Gate	2	2	-	0.8V ~ 3.6V	500 nA	4mA, 4mA	0.7V ~ 0.9V	1.6V ~ 2V	6.2ns @ 3.3V, 30pF	-40°C ~ 125°C	Surface Mount
SLJ74HC14ADTR2G IC INVERTER 6CH 1-INP 14TSSOP onsemi	3481	QRF	- + Add To Cart Inquiry Now		Bulk	74HC	Active	Inverter	6	1	Schmitt Trigger	2V ~ 6V	1 µA	5.2mA, 5.2mA	-	-	13ns @ 6V, 50pF	-55°C ~ 125°C	Surface Mount
SLV74HC14ADTR2G IC INVERTER 6CH 1-INP 14TSSOP onsemi	2245	QRF	- + Add To Cart Inquiry Now		Bulk	Automotive, AEC-Q100, 74HC	Active	Inverter	6	1	Schmitt Trigger	2V ~ 6V	1 µA	5.2mA, 5.2mA	-	-	19ns @ 6V, 50pF	-55°C ~ 125°C	Surface Mount
MC74HC4075FR1 IC GATE OR 3CH 3-INP SOEIAJ-14 Motorola	2781	QRF	- + Add To Cart Inquiry Now		Bulk	74HC	Active	OR Gate	3	3	-	2V ~ 6V	2 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	17ns @ 6V, 50pF	-55°C ~ 125°C	Surface Mount
SN74LVC1G02MDCKREP IC GATE NOR 1CH 2-INP SC70-5 Texas Instruments	3171	QRF	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk	74LVC	Active	NOR Gate	1	2	-	1.65V ~ 5.5V	10 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	5ns @ 5V, 50pF	-55°C ~ 125°C	Surface Mount

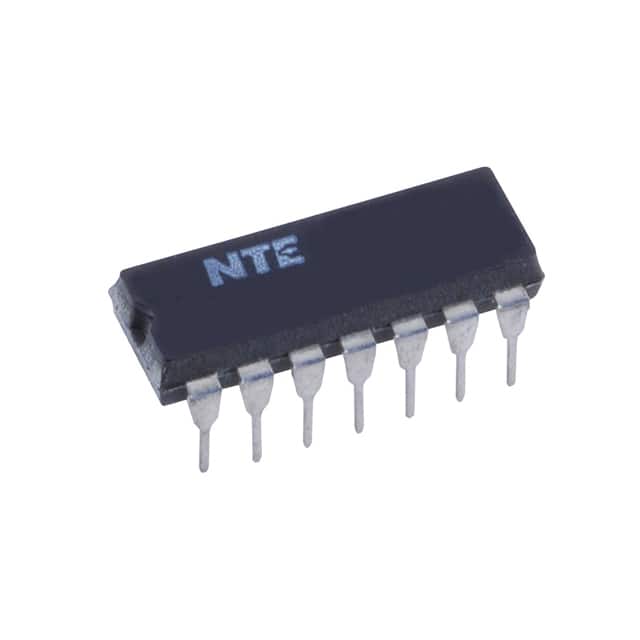

NTE74LS02 IC GATE NOR 4CH 2-INP 14DIP NTE Electronics, Inc	3511	QRF	- + Add To Cart Inquiry Now	Datasheet	Bag	74LS	Active	NOR Gate	4	2	-	4.75V ~ 5.25V	-	400µA, 8mA	0.8V	2V	15ns @ 5V, 50pF	0°C ~ 70°C (TA)	Through Hole
NTE74LS00 IC GATE NAND 4CH 2-INP 14DIP NTE Electronics, Inc	2040	QRF	- + Add To Cart Inquiry Now	Datasheet	Bag	74LS	Active	NAND Gate	4	2	-	4.75V ~ 5.25V	-	400µA, 8mA	0.8V	2V	15ns @ 5V, 50pF	0°C ~ 70°C (TA)	Through Hole
MC54H08L 54H08 - TTL AND GATE Motorola	3671	QRF	- + Add To Cart Inquiry Now		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
5451FM AND-OR-INVERT GATE, TTL National Semiconductor	2232	QRF	- + Add To Cart Inquiry Now		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
