| Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSS123NH6327XTSA1MOSFET N-CH 100V 190MA SOT23-3 |
355519 | 0.49 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 190mA (Ta) | 4.5V, 10V | 6Ohm @ 190mA, 10V | 1.8V @ 13µA | 0.9 nC @ 10 V | ±20V | 20.9 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
2N7002H6327XTSA2MOSFET N-CH 60V 300MA SOT23-3 |
398938 | 0.38 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 4.5V, 10V | 3Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.6 nC @ 10 V | ±20V | 20 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS84PH6433XTMA1MOSFET P-CH 60V 170MA SOT23-3 |
3237 | 0.46 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | SIPMOS® | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 60 V | 170mA (Ta) | 4.5V, 10V | 8Ohm @ 170mA, 10V | 2V @ 20µA | 1.5 nC @ 10 V | ±20V | 19 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS316NH6327XTSA1MOSFET N-CH 30V 1.4A SOT23-3 |
172334 | 0.46 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.4A (Ta) | 4.5V, 10V | 160mOhm @ 1.4A, 10V | 2V @ 3.7µA | 0.6 nC @ 5 V | ±20V | 94 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSS816NWH6327XTSA1MOSFET N-CH 20V 1.4A SOT323-3 |
50222 | 0.48 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.4A (Ta) | 1.8V, 2.5V | 160mOhm @ 1.4A, 2.5V | 750mV @ 3.7µA | 0.6 nC @ 2.5 V | ±8V | 180 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

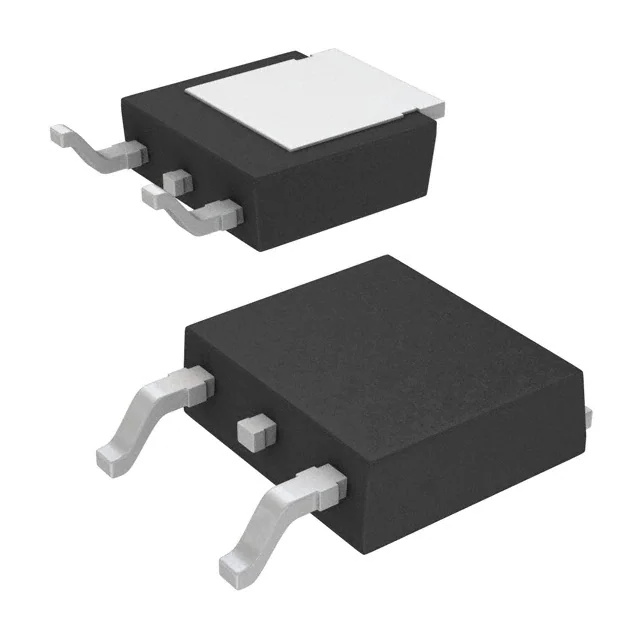

IRF40R207MOSFET N-CH 40V 56A TO252 |
12520 | 1.12 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET®, StrongIRFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 56A (Tc) | 6V, 10V | 5.1mOhm @ 55A, 10V | 3.9V @ 50µA | 68 nC @ 10 V | ±20V | 2110 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF7404TRPBFMOSFET P-CH 20V 6.7A 8SO |
84508 | 1.12 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6.7A (Ta) | 2.7V, 4.5V | 40mOhm @ 3.2A, 4.5V | 700mV @ 250µA (Min) | 50 nC @ 4.5 V | ±12V | 1500 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS214NH6327XTSA1MOSFET N-CH 20V 1.5A SOT23-3 |
363917 | 0.47 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 2.5V, 4.5V | 140mOhm @ 1.5A, 4.5V | 1.2V @ 3.7µA | 0.8 nC @ 5 V | ±12V | 143 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS214NWH6327XTSA1MOSFET N-CH 20V 1.5A SOT323-3 |
71901 | 0.58 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 2.5V, 4.5V | 140mOhm @ 1.5A, 4.5V | 1.2V @ 3.7µA | 0.8 nC @ 5 V | ±12V | 143 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS314PEH6327XTSA1MOSFET P-CH 30V 1.5A SOT23-3 |
71971 | 0.53 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 4.5V, 10V | 140mOhm @ 1.5A, 10V | 2V @ 6.3µA | 2.9 nC @ 10 V | ±20V | 294 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS806NH6327XTSA1MOSFET N-CH 20V 2.3A SOT23-3 |
124165 | 0.53 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.3A (Ta) | 1.8V, 2.5V | 57mOhm @ 2.3A, 2.5V | 750mV @ 11µA | 1.7 nC @ 2.5 V | ±8V | 529 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRLML6246TRPBFMOSFET N-CH 20V 4.1A SOT23 |
70815 | 0.58 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.1A (Ta) | 2.5V, 4.5V | 46mOhm @ 4.1A, 4.5V | 1.1V @ 5µA | 3.5 nC @ 4.5 V | ±12V | 290 pF @ 16 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLML6346TRPBFMOSFET N-CH 30V 3.4A SOT23 |
229621 | 0.45 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.4A (Ta) | 2.5V, 4.5V | 63mOhm @ 3.4A, 4.5V | 1.1V @ 10µA | 2.9 nC @ 4.5 V | ±12V | 270 pF @ 24 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLML2803TRPBFMOSFET N-CH 30V 1.2A SOT23 |
539560 | 0.49 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.2A (Ta) | 4.5V, 10V | 250mOhm @ 910mA, 10V | 1V @ 250µA | 5 nC @ 10 V | ±20V | 85 pF @ 25 V | - | 540mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLML6302TRPBFMOSFET P-CH 20V 780MA SOT23 |
308726 | 0.51 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 780mA (Ta) | 2.7V, 4.5V | 600mOhm @ 610mA, 4.5V | 1.5V @ 250µA | 3.6 nC @ 4.45 V | ±12V | 97 pF @ 15 V | - | 540mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLML5103TRPBFMOSFET P-CH 30V 760MA SOT23 |
269031 | 0.52 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 760mA (Ta) | 4.5V, 10V | 600mOhm @ 600mA, 10V | 1V @ 250µA | 5.1 nC @ 10 V | ±20V | 75 pF @ 25 V | - | 540mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSP149H6327XTSA1MOSFET N-CH 200V 660MA SOT223-4 |
9284 | 1.64 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 660mA (Ta) | 0V, 10V | 1.8Ohm @ 660mA, 10V | 1V @ 400µA | 14 nC @ 5 V | ±20V | 430 pF @ 25 V | Depletion Mode | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSC022N04LSATMA1MOSFET N-CH 40V 100A TDSON-8-6 |
9880 | 1.78 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 4.5V, 10V | 2.2mOhm @ 50A, 10V | 2V @ 250µA | 37 nC @ 10 V | ±20V | 2600 pF @ 20 V | - | 2.5W (Ta), 69W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSC0501NSIATMA1MOSFET N-CH 30V 29A/100A TDSON |
15000 | 1.78 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 29A (Ta), 100A (Tc) | 4.5V, 10V | 1.9mOhm @ 30A, 10V | 2V @ 250µA | 33 nC @ 10 V | ±20V | 2200 pF @ 15 V | Schottky Diode (Body) | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSC0702LSATMA1MOSFET N-CH 60V 100A SUPERSO8 |
2374 | 1.88 |
Add To CartInquiry Now |
Datasheet |
Cut Tape (CT),Digi-Reel® | OptiMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 4.5V, 10V | 2.3mOhm @ 50A, 10V | 2.3V @ 49µA | 30 nC @ 4.5 V | ±20V | 4400 pF @ 30 V | Standard | 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
